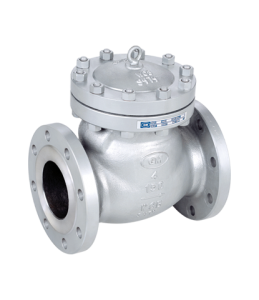

Product Details
Application: Non Return Flow
Features / Benefit: Swing Type Design Renewable Seat Rings, Integral Seat Rings
Ansi Class / Rating:150#, 300#, 600#
Design Standard: BS 1868, API 6D
Testing Standard: API 598, ISO 5208
F to F Standard: ASME B16.10
End Connection Standard: ASME B16.5
Size: 50 mm to 600 mm
Materials
Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc
Trim : 13 % Cr, Stellite etc
Ends: Flanged End, Butt Weld End
Operation: Auto

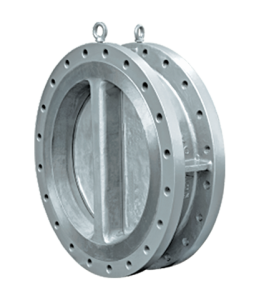

Product Details
Application: Non Return Flow
Features / Benefit Heavy duty Spring providing intantaneous response to system change PTFE spacers designed to maintain plate alignment Lifting Bolt Provided for easy installation
Ansi Class / Rating: 150#, 300#
Design Standard: API 6D
Testing Standard: API 598
F to F Standard: ASME B16.10
End Connection Standard: ASME B16.5
Size: 50 mm to 600 mm
Materials:
- Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc
- Disc : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc
- Seat : EPDM, Nitrile, PTFE etc
Ends: Flange End , Wafer End
Operation: AutoSocket Weld End, Butt Weld End, Flange End
Operation:Manual

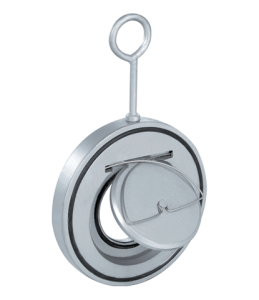

Product Details
Application: Non Return Flow
Features / Benefit: Swing Type Design Lifting Bolt Provided for easy installation
Ansi Class / Rating: 150#, 300#
Design Standard: API 6D
Testing Standard: API 598
F to F Standard: ASME B16.10
End Connection Standard:Wafer to suit ASME B 16.5 Flange
Size: 50 mm to 600 mm
Materials
- Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc
- Disc : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc
- Seat : EPDM, Nitrile, PTFE, Vitonetc
Ends: Wafer End
Operation :Auto
Ends: Screwed End , Socket Weld End , Butt Weld End
Operation: Manual
