PRODUCT DETAILS

Application: Isolation

Features / Benefit: 100 % dielectrically spark tested ,suitable for vacuum service ,low maintenance cost ,absolute resistance to atmosphere & wear

Ansi Class / Rating:150#

Design Standard:BS EN ISO 17292

Testing Standard: API 598

F to F Standard: ASME B16.10

End Connection Standard:ASME B16.5

Size:15 mm to 200 mm

Materials:

Body : WCB, CF8, CF8M, Hast Alloy,
Super Duplex, Alloy 20 , LCB etc
Ball , Stem : WCB, CF8, CF8M,
Hast Alloy, Super Duplex, Alloy 20 , LCB etc
Linning : PFA , FEP

Ends: Flanged End

Operation:Mannual, Pneumatic, Electric

Lined Butterfly ValveApplication: Isolation

Features / Benefit : 100 % dielectrically spark tested, suitable for vacuum service ,low maintenance cost, absolute resistance to atmosphere & wear

Ansi Class / Rating: 150#

Design Standard: API 609 Cat A

Testing Standard: API 598

F to F Standard :API 609 Cat A

End Connection Standard: Wafer to suit ASME B 16.5 Flange

Size: 50 mm to 400 mm

Materials

Body : WCB, CF8, CF8M, Hast Alloy,
Super Duplex, Alloy 20 , LCB etc
Disc , Stem : WCB, CF8, CF8M, Hast Alloy,
Super Duplex, Alloy 20 , LCB etc
Linning : PFA , FEP

Ends: Wafer End

Operation: Mannual, Pneumatic, Electric

Lined Plug ValveApplication: Isolation

Features / Benefit: 100 % dielectrically spark tested, suitable for vacuum service
low maintenance cost, absolute resistance to atmosphere & wear

Ansi Class / Rating:150#

Design Standard: API 599

Testing Standard :API 598

F to F Standard: ASME B 16.10

End Connection Standard: ASME B16.5

Size: 15 mm to 300 mm

Materials

Body : WCB, CF8, CF8M, Hast Alloy,
Super Duplex, Alloy 20 , LCB etc
Plug , Stem : WCB, CF8, CF8M, Hast Alloy,
Super Duplex, Alloy 20 , LCB etc
Linning : PFA , FEP

Ends: Flanged End

Operation: Mannual, Pneumatic, Electric

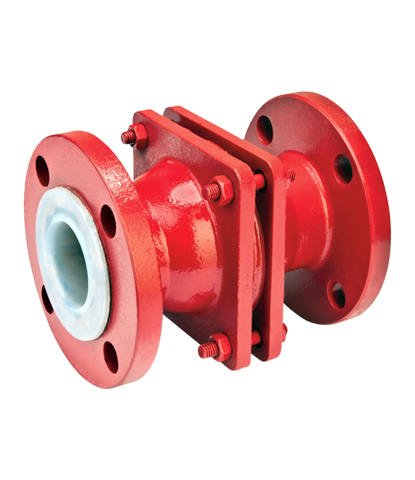

Lined Ball Check ValveApplication: Non Return Flow

Features / Benefit:100 % dielectrically spark tested
suitable for vacuum service
low maintenance cost
absolute resistance to atmosphere & wear

Ansi Class / Rating: 150#

Design Standard: Mfg Standard

Testing Standard:API 598, BS 6755 Part II

F to F Standard: ASME B16.10

End Connection Standard: ASME B16.5

Size: 15 mm to 100 mm

Materials

Body : WCB, CF8, CF8M, Hast Alloy,
Super Duplex, Alloy 20 , LCB etc
Linning : PFA , FEP

Ends: Flange End

Operation: Auto

  • Lined Wafer Check ValveApplication :Non Return Flow
  • Features / Benefit: dielectrically spark tested, suitable for vacuum service, low maintenance cost, absolute resistance to atmosphere & wear
  • Ansi Class / Rating: 150#
  • Design Standard: MFG Standard
  • Testing Standard: API 598
  • F to F Standard: BS EN 558 (series 20)
  • End Connection Standard: Wafer to suit ASME B 16.5 Flange
  • Size: 80 mm to 300 mm
  • Materials : Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Disc : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Linning : PFA , FEP
  • Ends: Wafer End
  • Operation:Auto

Lined FittingsApplication:Isolation

Features / Benefit: 100 % dielectrically spark tested
low maintenance cost
absolute resistance to atmosphere & wear

Ansi Class / Rating: 150#

Design Standard: Mfg Standard

Testing Standard:

Size: 25 mm to 100 mm

Materials: Linning : PFA , FEP

Ends: Flanged End

Operation: –
