Product Details
CLASS:- 150# TO 600
Technical Detail
Design & Manufacturing Std : API:6D
Testing& Inspection Std : API:598 / API:6D
Face to Face : As per ANSI B 16.10
End Connection : F/E Drill as per ANSI B 16.5,Table-D,E,F
SPECIFICATION
- 2-PIECE & 3-PIECE DESIGN
- FULL BORE / REDUCED BORE
- FLAOTING TYPE BALL / TRUNNION MOUNT BALL
- LEVER OPERATED / GEART OPERATION / ELECTRIC OPERATION / PNEUMATIC OPERATION
| PART NAME | WCB | CF8 | CF8M | CF3 | CF3M | WC6 | LCB | LCC |
| Body & Side Pc. | A216 WCB | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M | A217 WC6 | A352 LCB | A352 LCC |
| Ball | CF8 / CF8M / CF3/ CF3M / CA15 | |||||||
| Seat Ring | CF8 / CF8M / CF3/ CF3M / CA15 | |||||||
| Seat Insert | PTFE / Virgin / RPFE / VITON / EPDM / GFT / Carbon Filled PTFE / (on Request) | |||||||
| Seat Ring Spring | Spirng Steel / AISI 304 / AISI 316 | |||||||
| Packing Ring | PTFE / Virgin / RPFE / VITON / EPDM / GFT / Carbon Filled PTFE / Grafoil / (on Request) | |||||||
| Body Stud & Nut | ASTM A 193 Gr. B7 / ASTM A 194 Gr. 2H | |||||||
| Stem | ASTM A 276 TP 304 | |||||||
| Gland Ring | PTFE / Virgin / RPFE / VITON / EPDM / GFT / Carbon Filled PTFE / Grafoil / (on Request) | |||||||
| Gland Bush | ASTM A 276 TP 304 | |||||||
| Gland Nut | C.S. / Steel / AISI 304 / AISI 316 | |||||||
| Handle | C.S. / Steel / AISI 304 / AISI 316 | |||||||
| Stem Seal | PTFE / Virgin / RPFE / VITON / EPDM / GFT / Carbon Filled PTFE / Grafoil / (on Request) | |||||||
| Trunnion ’O’ Ring | PTFE / Virgin / RPFE / VITON / EPDM / GFT / Carbon Filled PTFE / Grafoil / (on Request) | |||||||
| Trunnion | ASTM A 276 TP 304 | |||||||
CENTER DISC TYPE BUTTERFLY VALVE
SIZE:- 1 1/2″ TO 28″ (40NB TO 700NB)
CLASS:- 150#, PN-10 TO PN-25
Technical Detail
Design & Manufacturing Std : API:609 / IS:13095
Testing& Inspection Std : API:598 / IS:13095
Face to Face : BS 5155/ API 609/ IS 13095/ AWWA C 504.
End Connection : WAFER / LUG / FLANGED
Design Features :
- 100% tight shut off in both flow directions.
- REPLACEBAL/ Molded rubber seat in various material.
- “A Fully universal body design ensures suitable for mounting between all popular standards (VIZ:- ANSI, BS, DIN, IS, JIS, etc.)”
- Lever Operated, Gear Operated, Pneumatic and Electrical Actuator operated.
| PART NAME | MATERIAL |
| Body | C.I./ S.G.I. / C.S. / S.S.304 / S.S.316 with Integral Moulded EPDM/Viton Rubber Seat on Body |
| Disc | S.G. Iron / C.S. / CF8 / CF8M |
| Stem | AISI 410 / S.S.304 / S.S.316 |
| ‘O’ Ring | Nitrile / EPDM / Viton |
| Lever | M.S./ Cast Iron |
OFF CENTER DISC TYPE BUTTERFLY VALVE
SIZE:- 2″ TO 48″ (50NB TO 1200NB)
PRESSURE RANGE:- 150#
Technical Detail
Design & Manufacturing Std : API:609 / BS:5155 / MSS SP67 & ISO 5752
Testing& Inspection Std : API:598 / BS:6755 Part-I
Face to Face : BS 5155/ API 609/ IS 13095/ AWWA C 504.
Temp. Rating : ASTM B16.34
End Connection : WAFER / LUG / FLANGED
| PART NAME | CAST IRON | SGI | WCB | LCB | LCC | CF8 | CF8M |
| Body | CAST IRON | SGI | A216 WCB | A 352 LCB | A 352 LCC | A 351 CF8 | A 351 CF8M |
| Disc | SGI | SGI | A216 WCB | A 352 LCB | A 352 LCC | A 351 CF8 | A 351 CF8M |
| Stem | AISI 410 | AISI 410 | AISI 410 | SS 304 | SS 304 | SS 304 | SS 316 |
| Body Seat | SGI | SGI | WCB | SS 304 | SS 304 | SS 304 | SS 316 |
| Disc Seat | SS 304 | SS 304 | SS 304 | SS 304 | SS 304 | SS 304 | SS 316 |
| Disc Soft Seat | NITRILE / EPDM / VITON / PTFE | ||||||
| Bering Bush | G.M./ Bronze / PTFE / GF-PTFE / GFT / S.S.304 / S.S.316 | ||||||
| Gland Packing | Asbestos/ PTFE / Grafoil | ||||||
| Gland Bush | S.S.410/ S.S.304 / S.S.316 | ||||||
| Bottom Cover | AISI 410 | AISI 410 | AISI 410 | LCB | LCC | SS 304 | SS 316 |
| Hand Wheel | Ductile or Malleable Iron | ||||||
Product Details
Application: Isolation
Features / Benefit
Full Jacketed Design, Multiple Connection for proper jacket drainage, Specially designed for circulation of hot or coldliquid or gas Bi Directional Flow Inline PTFE Sleeve surrounds the Plug Unique Body & Plug Design for Low Torque Operation Self Sealing Design suitable for vacuum service, low maintenance cost cavity free,
Ansi Class / Rating: 150#, 300#
Design Standard: API 599
Testing Standard: API 598, 100 % dielectrically spark tested
F to F Standard: ASME B16.10
End Connection Standard: ASME B16.5
Size: 15 mm to 300 mm
Materials
- Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20, LCB etc
- Plug , Stem : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20, LCB etc
- Sleeve : PTFE
- Jacket : MS, Stainless Steel
Ends: Flanged End, Socket Weld End
Operation: Manual, Pneumatic, Electric

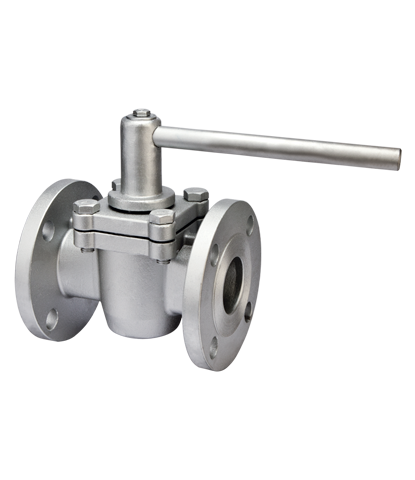

Application
Isolation
Features / Benefit
Bi Directional Flow Inline PTFE Sleeve surrounds
the Plug Unique Body & Plug Design for Low Torque
Operation Self-Sealing Design suitable for vacuum
service, low maintenance cost cavity free,
Ansi Class / Rating
150#, 300#
Design Standard
API 599
Testing Standard
API 598, 100 % dielectrically spark tested
F to F Standard
ASME B16.10
End Connection Standard
ASME B16.5
Size
15 mm to 300 mm
Materials
Body : WCB, CF8, CF8M, Hast Alloy,
Super Duplex, Alloy 20 , LCB etc
Plug : WCB, CF8, CF8M, Hast Alloy,
Super Duplex, Alloy 20 , LCB etc
Sleeve : PTFE
Ends
Flanged End, Socket Weld End
Operation
Mannual, Pneumatic, Electric
